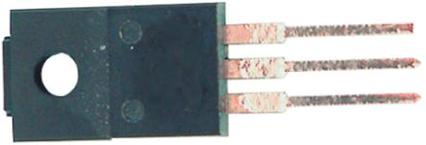

VS-ETX0806FP-M3 Datasheet PDF - Vishay Semiconductor

●The VS-ETX0806FP-M3 is a Hyperfast™ Recovery Rectifier designed with optimized performance of forward voltage drop, Hyperfast™ recovery time and soft recovery. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability characteristics. It is intended for use in PFC boost stage in the AC/DC section of SMPS, inverters or as free-wheeling diodes. The extremely optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers.

● Extremely low Qrr

● Low forward voltage drop

● Low leakage current

● Fully isolated package

● True 2 pin package

● Designed and qualified according to JEDEC®-JESD47
