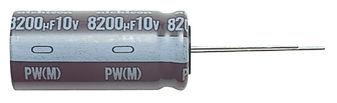

UPW1C472MHD6
$ 0.839

UPW1C472MHD6 Datasheet PDF - Nichicon

Manufacturer:
Nichicon
Category:
Aluminum Electrolytic Capacitors
Case Package:
Radial, CAN
Description:
4.7mF ±20% 16V 2740mA(100kHz)2740mA Φ18mm
Pictures:
3D Model
Symbol
Footprint
Pinout
Product Pictures
Documentation:
UPW1C472MHD6 Datasheet (5 Pages)
UPW1C472MHD6 Datasheet PDF (5 Pages)
View Datasheet
Click page to view the detail

UPW1C472MHD6 Specifications

TYPE
DESCRIPTION
Mounting Style
Through Hole
Number of Pins
2 Pin
Voltage Rating (DC)
16.0 V
Operating Voltage
16 VDC
Capacitance
4700 µF
Equivalent Series Resistance (ESR)
40.0 mΩ
Capacitance Tolerance
±20 %
Case/Package
Radial, CAN
Pin Pitch
7.5 mm
Part Family
UPW
Ripple Current
2.329A @120Hz
Operating Temperature (Max)
105 ℃
Operating Temperature (Min)
-55 ℃
Voltage Rating
16 V
View Datasheet >

UPW1C472MHD6 Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Active
Packaging
Bulk
Size-Length
25.0 mm
Size-Height
25 mm
Size-Diameter
18.0 mm
Dielectric Material
Aluminum Electrolytic
Operating Temperature
-55℃ ~ 105℃
Minimum Packing Quantity
300
Life (Hours)
8000h @105℃
View Datasheet >

UPW1C472MHD6 Documents

UPW1C472MHD6 Datasheet
Nichicon
5 Pages / 1.52 MByte
UPW1C472MHD6 Other Datasheet PDF
Nichicon
5 Pages / 0.07 MByte
UPW1C472MHD6 Features Description Parametrics
Nichicon
5 Pages / 3.95 MByte

UPW1C472 Documents

UPW1C472MHD Datasheet PDF
Nichicon
4.7mF ±20% 16V 3010mA(100kHz)3010mA Φ16mm
UPW1C472MHD6 Datasheet PDF
Nichicon
4.7mF ±20% 16V 2740mA(100kHz)2740mA Φ18mm
UPW1C472MHD6TN Datasheet PDF
Nichicon
Cap Aluminum 4700uF 16V 20% (18 X 25mm) Radial Aluminum Cylindrical Can 7.5mm 2740mA 8000 hr 105℃ Ammo Pack
UPW1C472MHH Datasheet PDF
Nichicon
CAP ALUM 4700uF 20% 16V RADIAL
UPW1C472MHH6 Datasheet PDF
Nichicon
CAP ALUM 4700uF 20% 16V RADIAL
