Part 3D Model

$ 0.211

SFH 4556P Datasheet PDF - Osram Opto

Manufacturer:

Osram Opto

Category:

LEDs

Case Package:

T-1

Description:

Infrared Emitter 860nm 12mW/sr Circular Top Mount 2Pin T-1 3/4

Pictures:

3D Model

Symbol

Footprint

Pinout

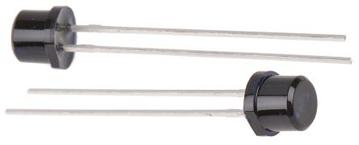

Product Pictures

Documentation:

SFH 4556P Datasheet (12 Pages)

Package Outline Dimension on7 Page

Part Numbering System on2 Page

SFH 4556P Datasheet PDF (12 Pages)

View Datasheet

Click page to view the detail

SFH 4556P Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Case/Package

T-1

Number of Positions

2 Position

Forward Voltage

1.5 V

Wavelength

850 nm

Viewing Angle

130°

Peak Wavelength

860 nm

Power Dissipation

200 mW

Rise Time

12.0 ns

Test Current

100 mA

Forward Current

100 mA

Maximum Forward Voltage (Max)

4.6 V

Forward Current (Max)

100 mA

Operating Temperature (Max)

100 ℃

Operating Temperature (Min)

-40 ℃

Power Dissipation (Max)

200 mW

View Datasheet >

SFH 4556P Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Bulk

Operating Temperature

-40℃ ~ 100℃ (TA)

View Datasheet >

SFH 4556P Environmental

SFH 4556P Export Classifications

SFH 4556P Function Overview

SFH 4556P Documents

SFH 4556P Datasheet

Osram Opto

12 Pages / 0.23 MByte

SFH4556 Documents

SFH 4556 Datasheet PDF

Osram Opto

IR transmitter; 5mm; 860nm; black; 145mW; 20°; THT; 100mA; 1.5÷1.8V

SFH4556 Datasheet PDF

Osram Opto

4.85mm, 1Element, INFRARED LED, 860nm, ROHS COMPLIANT PACKAGE-2

SFH 4556P Datasheet PDF

Osram Opto

Infrared Emitter 860nm 12mW/sr Circular Top Mount 2Pin T-1 3/4

SFH 4556 P Datasheet PDF

Osram Opto

IR transmitter; 5mm; 860nm; black; 12mW; 65°; THT; 100mA; 1.7÷3.6V

SFH4556P Datasheet PDF

Osram Opto

Infrared Emitter, 130°, T-1 3/4 (5mm), 100mA, 2V, 12ns, 12ns

SFH 4556-AW Datasheet PDF

Osram Opto

IR LED 850nm 100-200mW/sr 5mm (T-1 3/4)

SFH 4556-VAW Datasheet PDF

Osram Opto

Ir-Emitter 5mm 850nm 0.1W(1/10W)/Sr 4

SFH4556-AW Datasheet PDF

Osram Opto

IR-EMITTER 850NM 150mW/SR 5MM 4 **

SFH4556-BW Datasheet PDF

Osram Opto

IR-EMITTER 850NM 5MM160-320mW/S

SFH4556-VAW Datasheet PDF

Osram Opto

Ir-Emitter 5mm 850nm 0.1W(1/10W)/Sr 4
