L-793SRC-J4
$ 0.521

L-793SRC-J4 Datasheet PDF - Kingbright

Manufacturer:
Kingbright
Category:
Based LEDs
Case Package:
8 mm
Description:

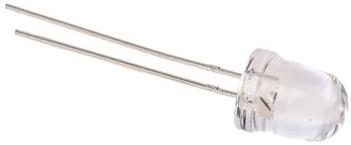

KINGBRIGHT L-793SRC-J4 LED, Red, Through Hole, 8mm, 20mA, 2.1V, 640nm
Pictures:
3D Model
Symbol
Footprint
Pinout
Product Pictures
Documentation:
L-793SRC-J4 Datasheet (6 Pages)
Package Outline Dimension on1 Page
L-793SRC-J4 Application Note (8 Pages)
L-793SRC-J4 Datasheet PDF (6 Pages)
View Datasheet
Click page to view the detail

L-793SRC-J4 Specifications

TYPE
DESCRIPTION
Mounting Style
Through Hole
Operating Voltage
2.1V ~ 2.5V
Case/Package
8 mm
Number of Positions
2 Position
Forward Voltage
2.1 V
Wavelength
640 nm
Luminous Intensity
6 cd
Viewing Angle
15°
Forward Current
20 mA
View Datasheet >

L-793SRC-J4 Size & Package

TYPE
DESCRIPTION
Packaging
Each
View Datasheet >

L-793SRC-J4 Documents

L-793SRC-J4 Datasheet
Kingbright
6 Pages / 0.3 MByte
L-793SRC-J4 Other Datasheet PDF
Kingbright
6 Pages / 0.3 MByte
L-793SRC-J4 Application Note
Kingbright
8 Pages / 0.56 MByte
