Part Datasheet Search > Varistors > Panasonic > ERZV05D180 Datasheet PDF
ERZV05D180
$ 0.092

ERZV05D180 Datasheet PDF - Panasonic

Manufacturer:
Panasonic
Category:
Varistors
Description:
Var 11VAC/14VDC 250A 18V Radial Bulk
Pictures:
3D Model
Symbol
Footprint
Pinout

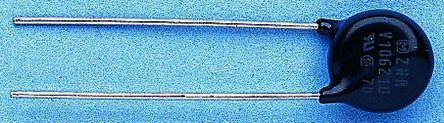

Product Pictures
Documentation:
ERZV05D180 Datasheet (20 Pages)
ERZV05D180 Datasheet PDF (20 Pages)
View Datasheet
Click page to view the detail

ERZV05D180 Specifications

TYPE
DESCRIPTION
Mounting Style
Through Hole
Capacitance
1.6 nF
Power Rating
10.0 mW
Clamping Voltage
40 V
Operating Temperature (Max)
85 ℃
Operating Temperature (Min)
-40 ℃
Voltage Rating (DC Max)
14 V
Voltage Rating (AC Max)
11 V
View Datasheet >

ERZV05D180 Documents

ERZV05D180 Datasheet
Panasonic
20 Pages / 0.38 MByte
