EKYA101ELL101MJ20S Datasheet PDF - UA(United Automation)

Manufacturer:

UA(United Automation)

Category:

Aluminum Electrolytic Capacitors

Description:

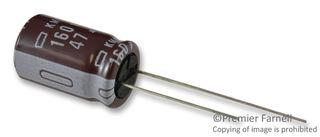

UNITED CHEMI-CON EKYA101ELL101MJ20S Electrolytic Capacitor, 100µF, 100V, KYA Series, ± 20%, Radial Leaded, 10mm

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

EKYA101ELL101MJ20S Datasheet (3 Pages)

Part Numbering System on1 Page

EKYA101ELL101MJ20S Datasheet PDF (3 Pages)

View Datasheet

Click page to view the detail

EKYA101ELL101MJ20S Specifications

TYPE

DESCRIPTION

Capacitance

100 µF

Capacitance Tolerance

±20 %

Pin Pitch

5 mm

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-40 ℃

Voltage Rating

100 V

View Datasheet >

EKYA101ELL101MJ20S Documents

EKYA101ELL101MJ20S Datasheet

UA(United Automation)

3 Pages / 0.25 MByte

EKYA101ELL101MJ20 Documents

EKYA101ELL101MJ20S Datasheet PDF

Chemi-Con

Cap Aluminum Lytic 100uF 100V 20% (10 X 20mm) Radial 5mm 800mA 6000H 105℃ Bulk

EKYA101ELL101MJ20S Datasheet PDF

UA(United Automation)

UNITED CHEMI-CON EKYA101ELL101MJ20S Electrolytic Capacitor, 100µF, 100V, KYA Series, ± 20%, Radial Leaded, 10mm
