$ 0.647

BFC236855224 Datasheet PDF - VISHAY

Manufacturer:

VISHAY

Category:

Film Capacitors

Case Package:

Radial, Box

Description:

220nF ±10% 400V PET

Pictures:

3D Model

Symbol

Footprint

Pinout

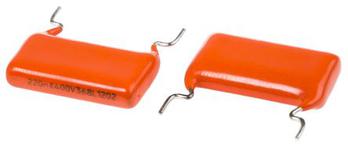

Product Pictures

Documentation:

BFC236855224 Datasheet (10 Pages)

BFC236855224 Datasheet PDF (10 Pages)

View Datasheet

Click page to view the detail

BFC236855224 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

400 V

Capacitance

0.22 µF

Capacitance Tolerance

±10 %

Case/Package

Radial, Box

Pin Pitch

22.5 mm

Part Family

MKT368

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

400 V

View Datasheet >

BFC236855224 Size & Package

TYPE

DESCRIPTION

Material

PET

Size-Length

26 mm

Size-Width

6.3 mm

Size-Height

18.5 mm

Lead Length

4 mm

Operating Temperature

-55℃ ~ 105℃

View Datasheet >

BFC236855224 Environmental

BFC236855224 Documents

BFC236855224 Datasheet

VISHAY

10 Pages / 0.12 MByte

BFC236855224 Other Datasheet PDF

VISHAY

10 Pages / 0.12 MByte

BFC236855224 Notice File

VISHAY

1 Pages / 0.02 MByte
