870055674007 Datasheet PDF - Wurth Electronics

Manufacturer:

Wurth Electronics

Category:

Single Capacitors

Description:

Electrolytic capacitor Radial lead 3.5mm 68μF 35V 20% (Ø x H) 8mm x 11.5mm Wuerth Elektronik 870055674007 1 pc(s)

Pictures:

3D Model

Symbol

Footprint

Pinout

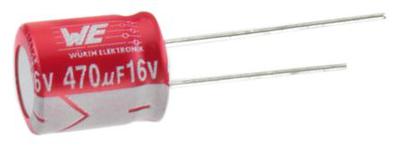

Product Pictures

Documentation:

870055674007 Datasheet (7 Pages)870055674007 Application Note (26 Pages)

870055674007 Datasheet PDF (7 Pages)

View Datasheet

Click page to view the detail

870055674007 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Voltage Rating (DC)

35.0 V

Capacitance

68 µF

Equivalent Series Resistance (ESR)

25 mΩ

Capacitance Tolerance

±20 %

Ripple Current

2.89 A

Ripple Current (Low Frequency)

144.5mA @120Hz

Ripple Current (High Frequency)

2.89A @100kHz

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

35 V

View Datasheet >

870055674007 Environmental

870055674007 Function Overview

870055674007 Documents

870055674007 Datasheet

Wurth Electronics

7 Pages / 0.46 MByte

870055674007 Other Datasheet PDF

Wurth Electronics

1 Pages / 0.12 MByte

870055674007 Application Note

Wurth Electronics

26 Pages / 4.19 MByte
