1SNK505210R0000 Datasheet PDF - Entrelec

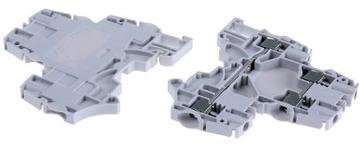

●The SNK series from Entrelec UK is a 2 position ZS4 -D2 screw clamp double deck terminal block with DIN rail mounting. This terminal block is space saving and suitable for wire size ranging from 24AWG to 12AWG.

● Grey colour housing with spacing of 5.2mm

● Dimension of fuse terminal is 65.5mm x 70.4mm x 5.2mm (D x H x W)

● Net weight of 15.3g

● Rated voltage is 800V and rated current is 29A, two feed-through circuit

● Ambient operation air temperature range from -55°C to 110°C

● Polyamide (PA) insulating material

● Pollution degree is 3

● UL 1059 recognized and CSA certified

● Flammability rating meets UL94 V-0

● IP20 rated and NEMA1 protection
